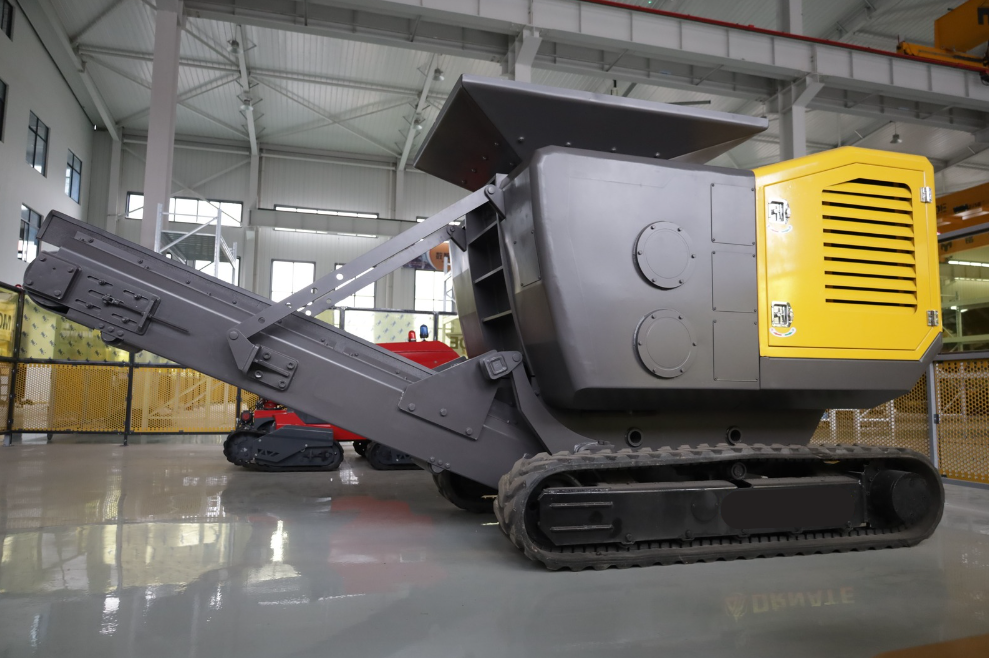

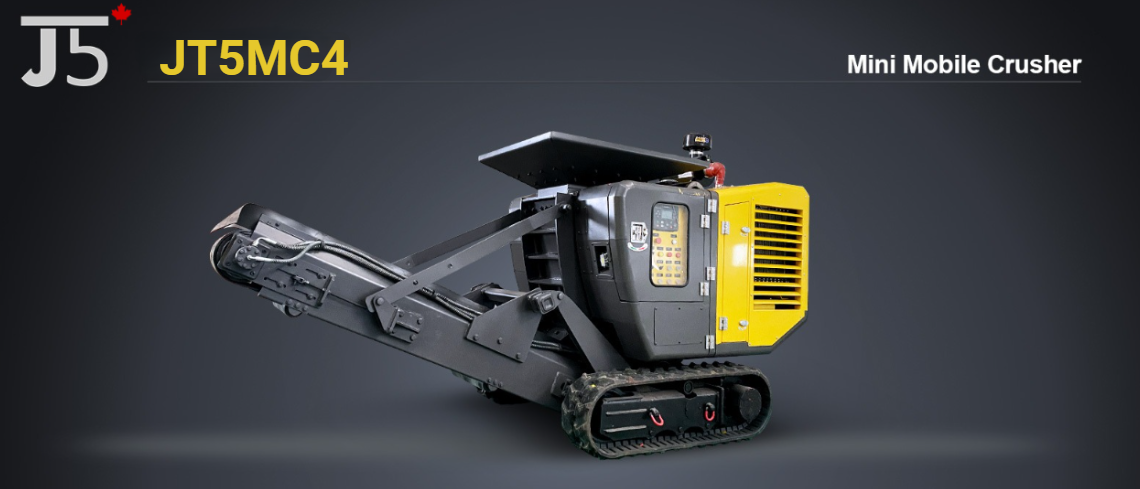

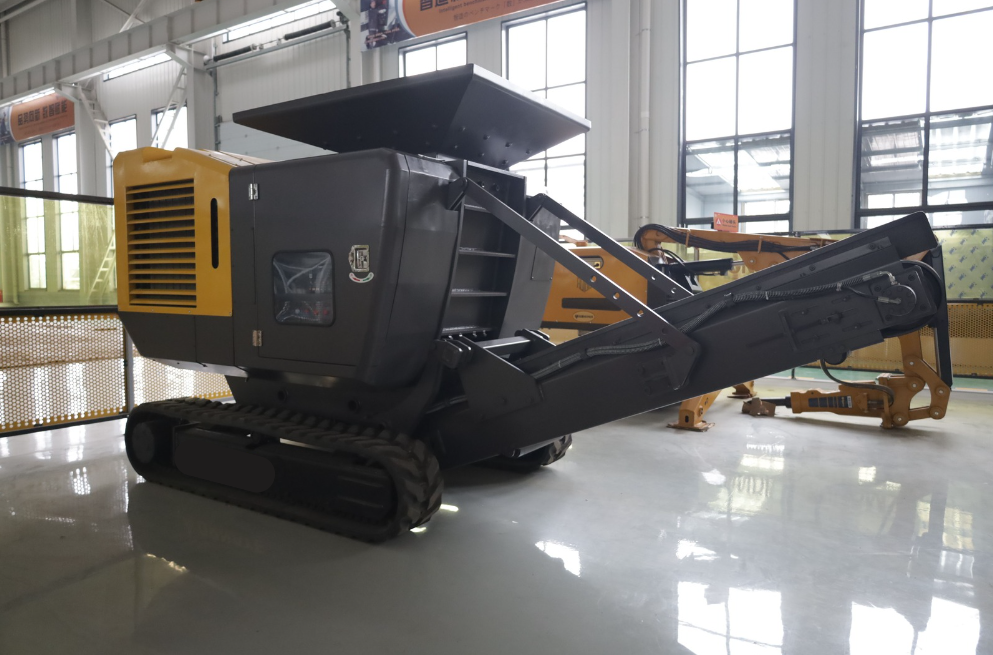

JT5MC4 Mini Mobile Crusher

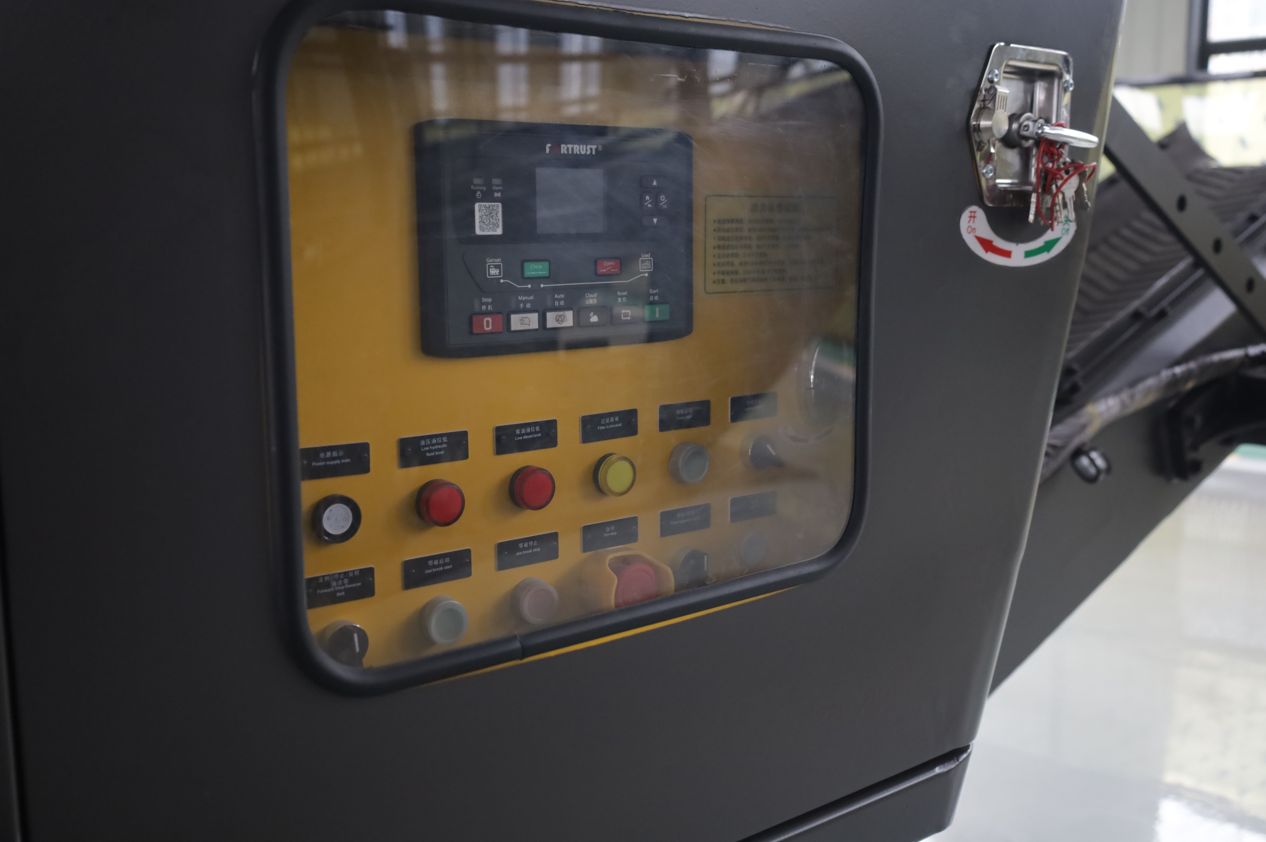

The JT5MC4 is equipped with an EU stage 5 diesel/hydraulic engine supplied by Yanmar. All functions of the JT5MC4 can be operated using the remote control, allowing the loader to fully operate the crusher from their loading cab.

The JT5MC4 Mini Mobile Rock Crusher is the ideal machine for all small to moderate crushing projects where construction and demolition “waste” materials can be recycled onsite. It provides an excellent solution for builders, landscape gardening, recycling, demolition, infrastructure, relief aid, and medium-sized aggregate crushing applications.

JT5MC4 Key Specifications:

• Transport Dimensions (mm): 3500x1500x1800
• Weight(T): 4.2
• Max Output Capacity (T/H): 50
• Feed port size (mm): 320x560
• Stock bin volume(m³): 1.2
• Feeding height(mm): 1800
• Outside height(mm): 1100
• Max. feeding size(mm): 250
• Max output size(mm): 70

JT5MC4 Main Configurations:

• Track model:Rubber  250x1521
• Engine(kw):Yanmar 25
• Fuel consumption /electricity consumption (L):5-10
• Hydraulic pump:Rexroth/equivalent brands
• Motor:Parker/equivalent brand
• Hydraulic valve:Rexroth/equivalent brands
• Hydraulic fittings:Continental
• Electrical appliances:Schneider/ABB
• Structure:Hardox/high strength/wear resistance
• Accessories:Bearings. Drive belts. Layers
• Additional Tools: 1 Machine Toolkit Included
• Certificate:Certificate/Operation and Maintenance Certificate
• Remark:Fully hydraulic

Available Add-ons:

• Dust Suppression System
• Magnetic Output Filter
