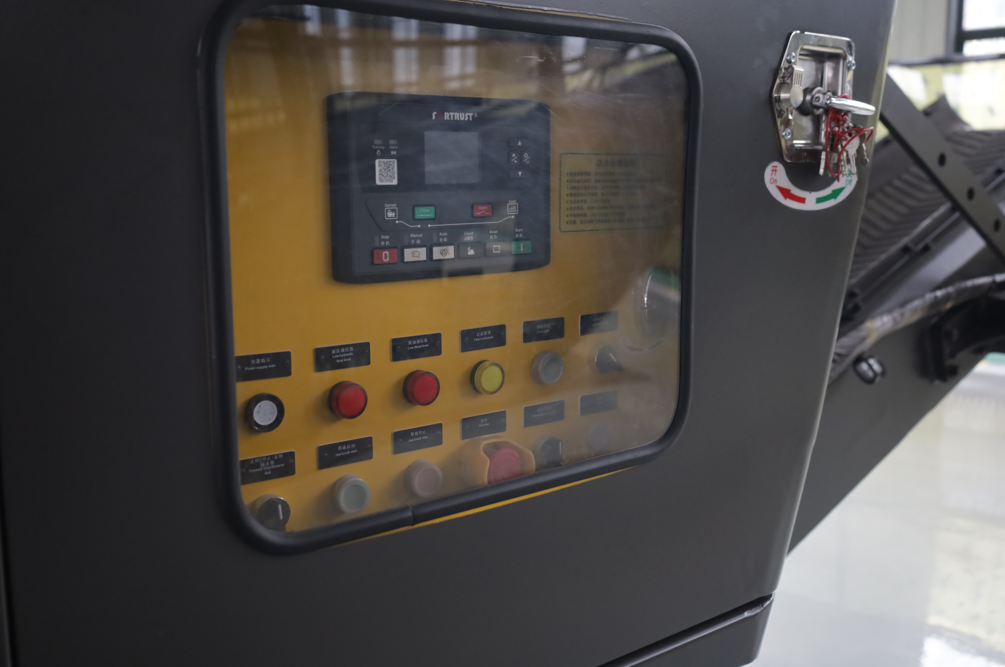

The JT5MC5 is powered by an EU stage 5 diesel/hydraulic engine provided by Yanmar. All the operations of the JT5MC5 can be controlled via remote, enabling the operator to fully manage the crusher from the loading cab.

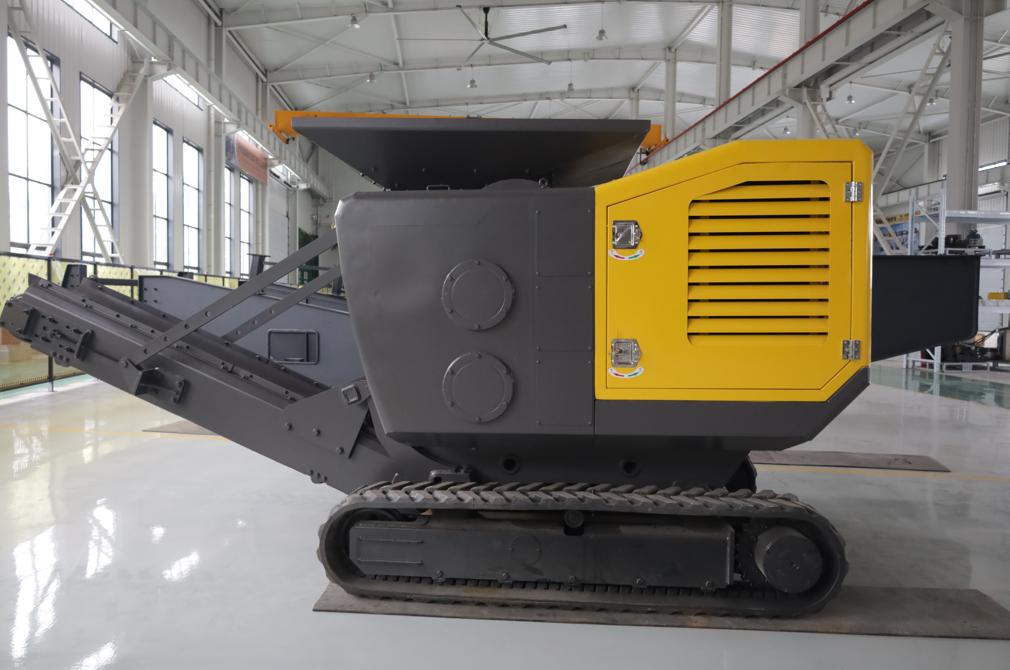

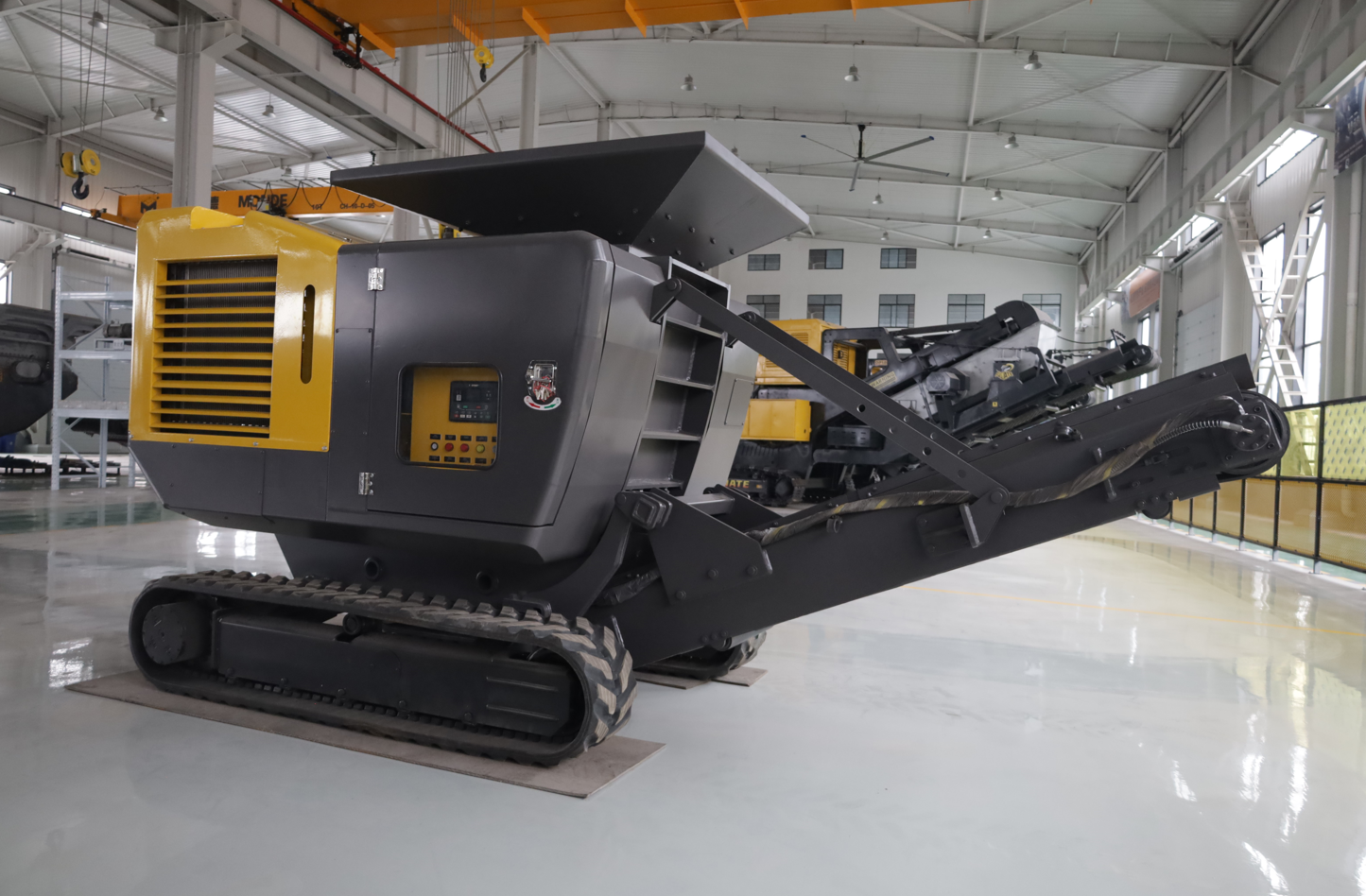

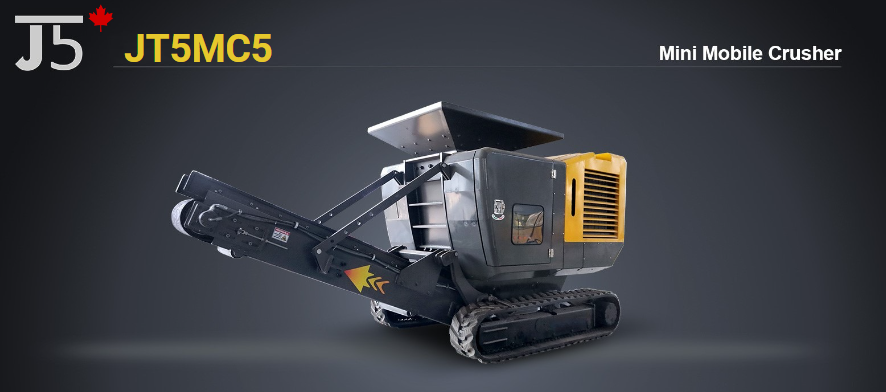

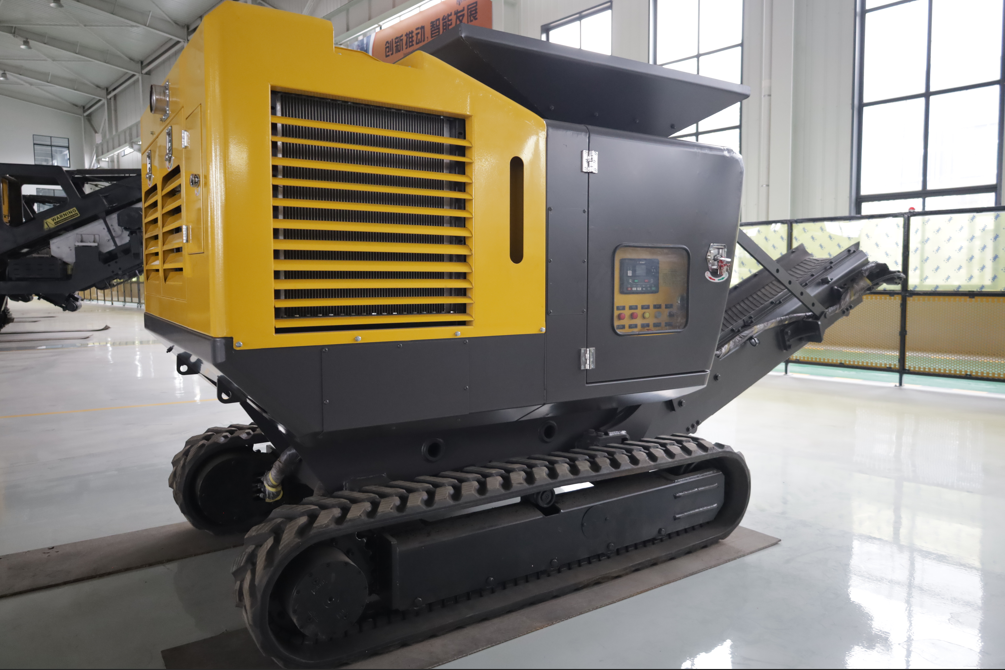

Ideal for small to moderate crushing projects, the JT5MC5 Tracked Crushing Plant is designed for onsite recycling of construction and demolition materials. It offers a valuable solution for builders, landscape gardening, recycling, demolition, infrastructure, relief aid, and medium-sized aggregate crushing applications.

JT5MC5 Key Specifications:

• Transport Dimensions (mm): 4500x1680x2180
• Weight(T): 5.3
• Max Output Capacity (T/H): 60
• Feed port size (mm): 400x600
• Stock bin volume(m³): 1.5
• Feeding height(mm): 2180
• Outside height(mm): 1250
• Max. feeding size(mm): 300
• Max output size(mm): 70



JT5MC Main Configurations:

• Track model:Rubber  300x2299
• Engine(kw):Yanmar 37
• Fuel consumption /electricity consumption (L):5-10
• Hydraulic pump:Rexroth/equivalent brands
• Motor:Parker/equivalent brand
• Hydraulic valve:Rexroth/equivalent brands
• Hydraulic fittings:Continental
• Electrical appliances:Schneider/ABB
• Structure:Hardox/high strength/wear resistance
• Accessories:Bearings. Drive belts. Layers
• Additional Tools: 1 Machine Toolkit Included
• Certificate:Certificate/Operation and Maintenance Certificate
• Remark:Fully hydraulic

Available Add-ons:

• Dust Suppression System
• Magnetic Output Filter
