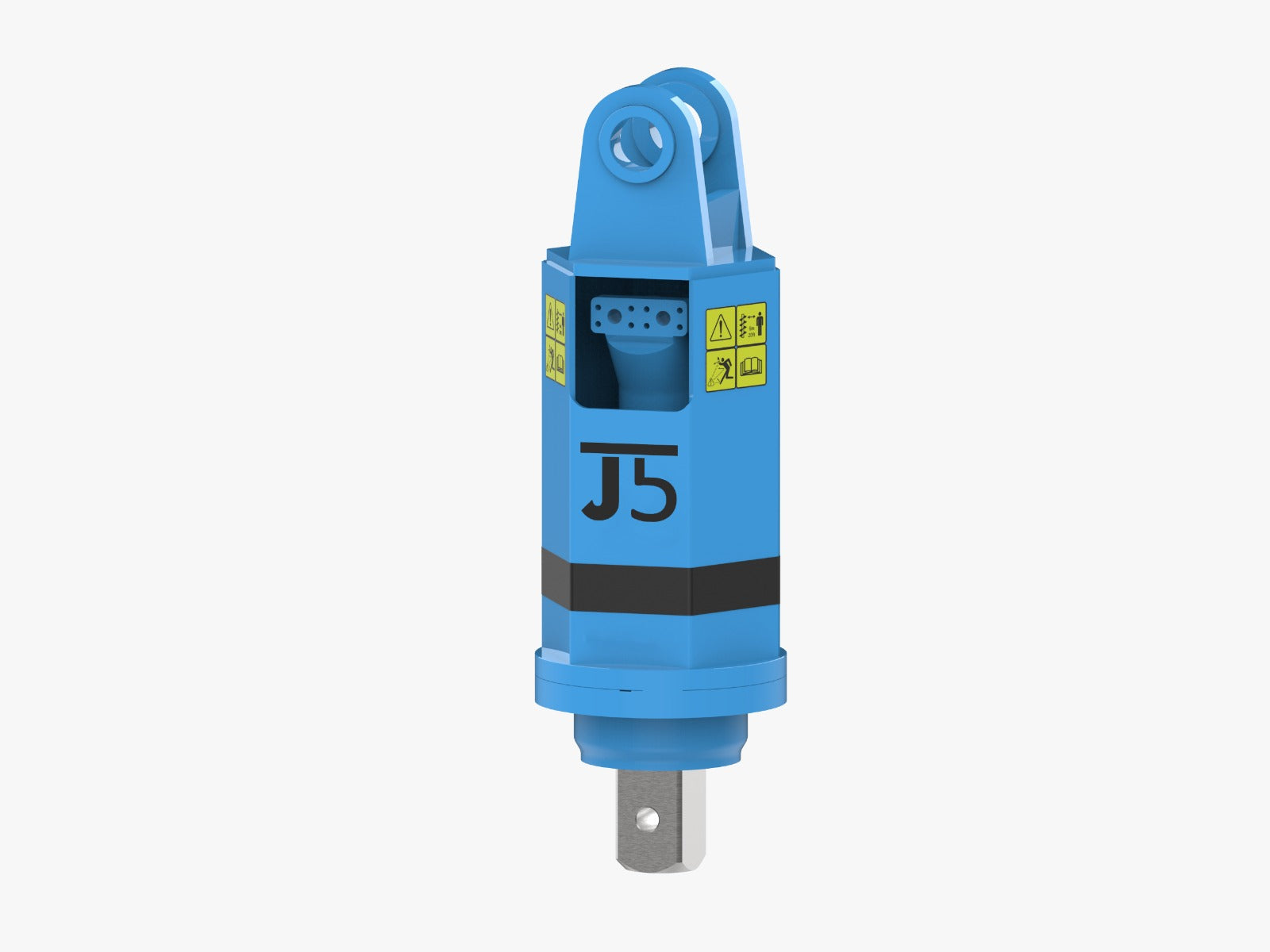

JT5-65000 Y Series Anchor Drive Maximum Torque for Large-Scale Piling Projects
The JT5-65000 Y Series Anchor Drive is a high-performance drive head engineered for large-scale helical pile installations. Designed with a low-speed, high-torque motor, it delivers superior power, durability, and precision. This model is purpose-built for demanding civil, engineering, and renewable energy construction projects, ensuring reliable performance even under extreme conditions.
Perfectly compatible with JT5 helical pile series products, the JT5-65000 integrates seamlessly with the JT5 installation sensor system, offering exceptional efficiency and accuracy. From foundation piling and well drilling to solar and wind energy installations, this anchor drive is the trusted choice for heavy-duty contractors worldwide.
Product Parameters – JT5-65000 Y Series Anchor Drive
- Suitable Excavator: 20–30 ton (44,093–66,139 lbs)
- Rated Torque: 64,896 Nm (47,867 ft-lb)
- Maximum Torque: 81,120 Nm (59,834 ft-lb)
- Rated Power: 107 kW
- Maximum Pressure: 280 Bar (4,061 psi)
- Recommended Pressure: 160–240 Bar (2,321–3,481 psi)
- Recommended Flow: 200–250 LPM (54.6–68.3 gpm)
- Speed Range: 10–15 RPM
- Weight: 770 kg (1,698 lbs)
- Height: 1,500 mm (59.1 in)
- Motor Oil Port: G1 1/4” BSP
- Output Shaft: 110 mm × 110 mm Square (4.3” Square)
Key Features
- Massive torque capacity (up to 81,120 Nm) for heavy-duty piling
- Compatible with 20–30 ton excavators
- Rugged build with low-speed, high-torque performance
- Seamless integration with JT5 sensor system for precision installation
- Built for multi-industry use: civil, engineering, garden, and renewable energy sectors
- Long service life with excellent durability under extreme conditions
Product Applications
- Garden Construction: Tree planting, fence piling, and landscaping operations
- Civil Construction: Installation of road signs, poles, and foundation piles
- Engineering Construction: Well drilling, spiral pile installation, rod and mast installation
- New Energy Construction: Solar equipment installation, wind turbine foundation works, and renewable energy projects
