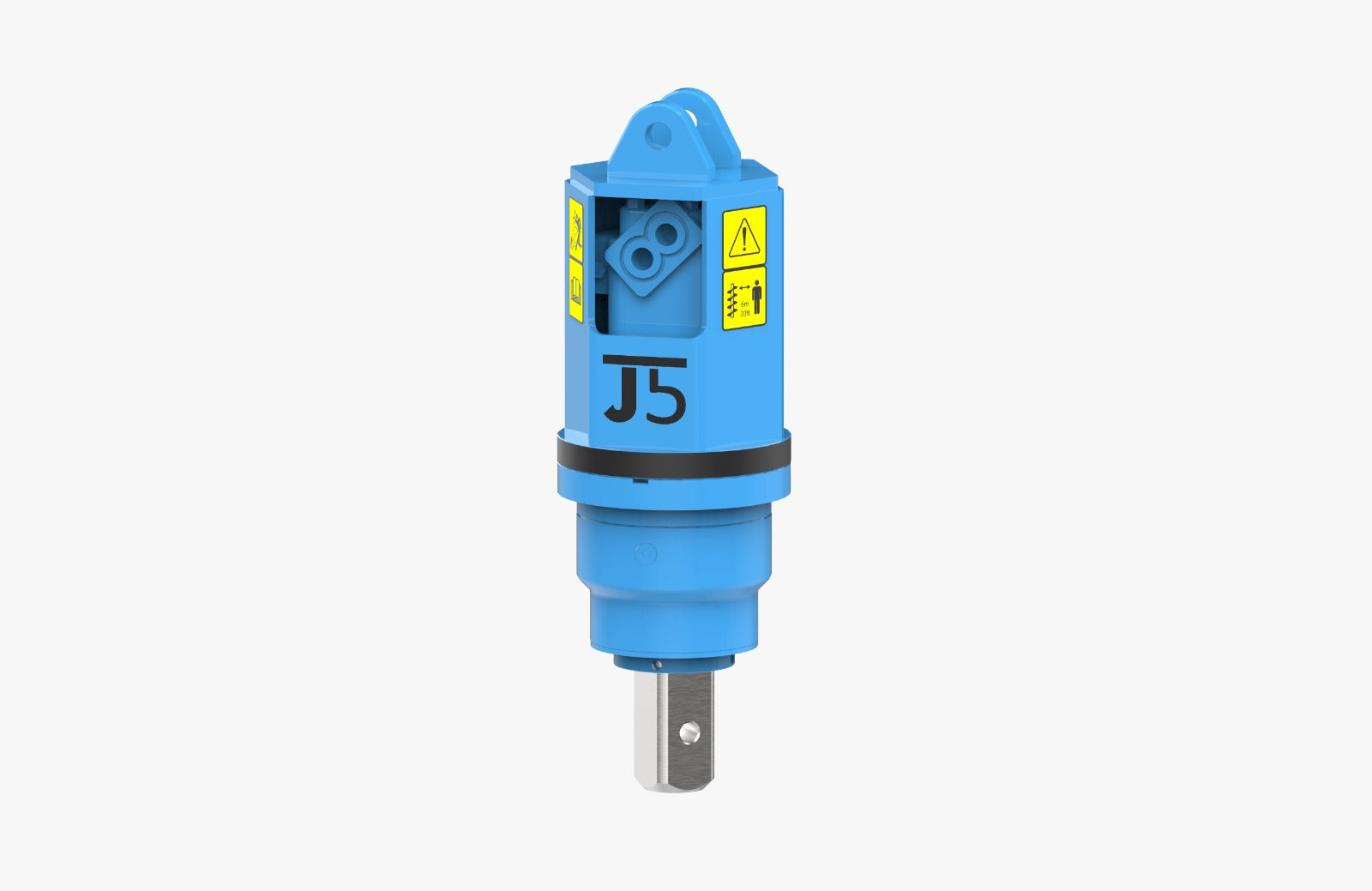

JT5-40000 Y Series Anchor Drive High Torque, Reliable Foundation Drilling Solution

The JT5-40000 Y Series Anchor Drive is engineered for demanding helical pile installations, delivering maximum torque and durability. Designed with a low-speed, high-torque motor, this drive head ensures exceptional efficiency, reliability, and long service life. Built to perfectly fit JT5 helical pile series products, it integrates seamlessly with the JT5 installation sensor system for precision foundation work.

Ideal for garden, civil, engineering, and renewable energy construction, the JT5-40000 Y Series Anchor Drive is trusted for tree planting, fence piling, road sign foundations, well drilling, mast installation, and solar or wind energy projects. Its powerful torque output makes it the preferred choice for heavy-duty piling and foundation applications.

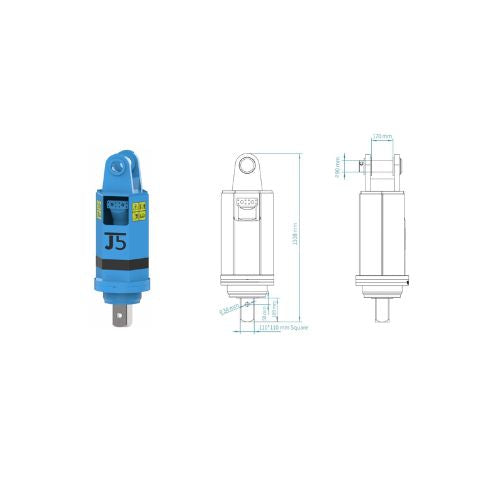

Product Parameters – JT5-40000 Y Series Anchor Drive

• Suitable Excavator: 15–20 ton (33,070–44,093 lbs)
• Rated Torque: 39,760 Nm (29,327 ft-lb)
• Maximum Torque: 59,640 Nm (43,990 ft-lb)
• Rated Power: 90 kW
• Maximum Pressure: 280 Bar (4,061 psi)
• Recommended Pressure: 160–220 Bar (2,321–3,191 psi)
• Recommended Flow: 150–200 LPM (40.9–54.6 gpm)
• Speed Range: 12–16 RPM
• Weight: 460 kg (1,014 lbs)
• Height: 1,340 mm (52.8 in)
• Motor Oil Port: G1 1/4” BSP
• Output Shaft: 110 mm × 110 mm Square (4.3” Square)

Key Features

• Heavy-duty anchor drive with 59,640 Nm maximum torque
• Compatible with 15–20 ton excavators
• Low-speed, high-torque motor for maximum durability
• Seamless integration with JT5 helical pile installation sensor system
• Multi-application design: civil, garden, engineering, and renewable energy projects
• Rugged build for long service life in challenging environments

Product Applications

• Garden Construction: Tree planting, fence piling, landscaping, and similar drilling operations.
• Civil Construction: Installation of road signs, poles, and foundation piles.
• Engineering Construction: Well drilling, spiral pile installation, rod and mast installation.
• New Energy Construction: Solar equipment installation, wind turbine foundation installation, and other renewable energy projects.
