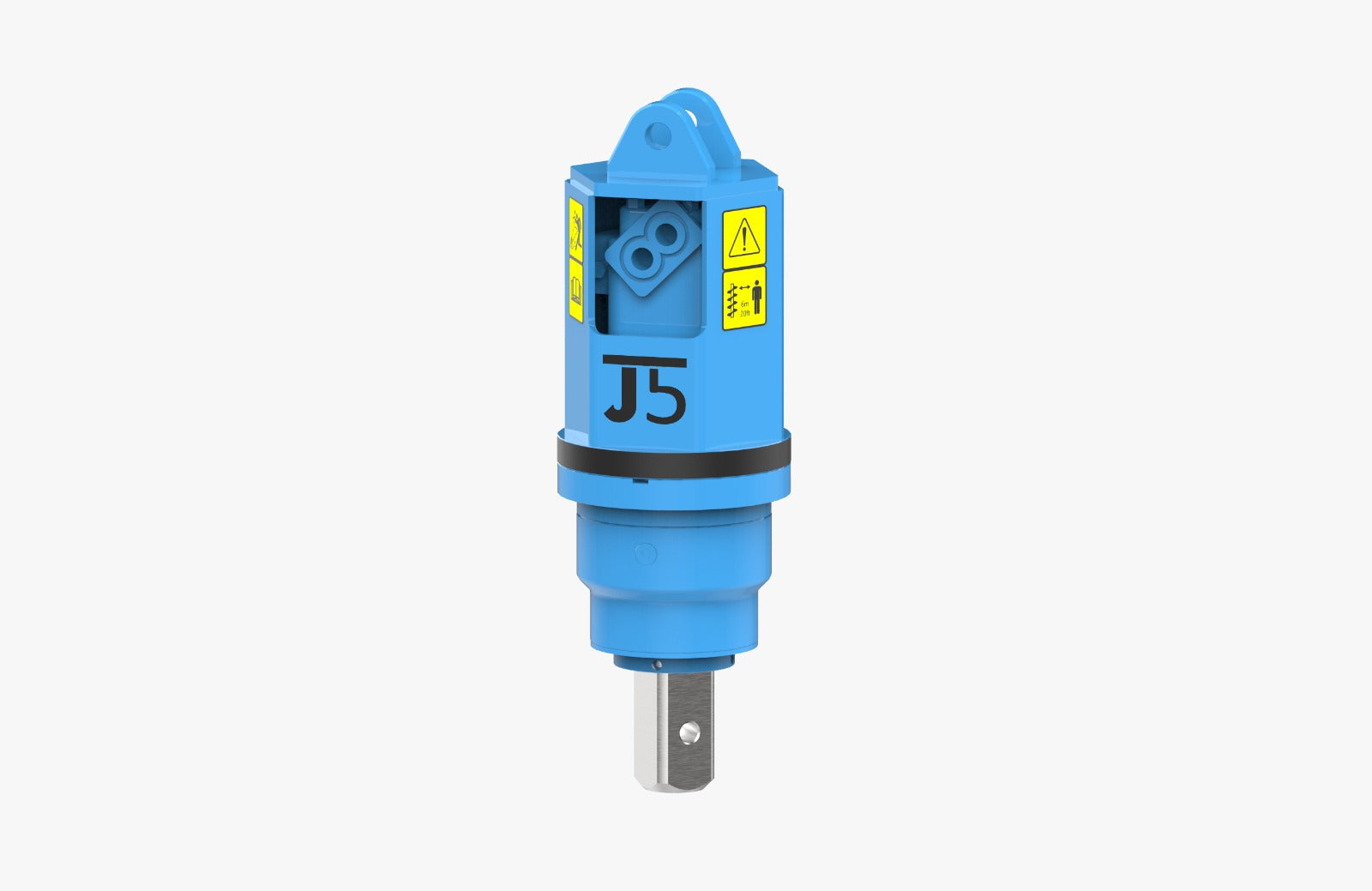

JT5-20000 Y Series Anchor Drive High Torque Helical Pile Installation Solution
The JT5-20000 Y Series Anchor Drive is purpose-built for the installation of JT5 helical pile series products. Designed to deliver low speed with high torque, this drive head ensures maximum efficiency, durability, and reliability in all ground conditions. Its robust engineering allows seamless integration with the JT5 helical pile installation sensor system, providing precise control and consistent performance.
Perfect for garden construction, civil foundation works, engineering projects, and renewable energy installations, the JT5-20000 Y Series Anchor Drive is the professional choice for piling, mast installation, and solar or wind energy foundation works. With superior torque output and long service life, it stands out as the ideal solution for demanding helical pile applications.

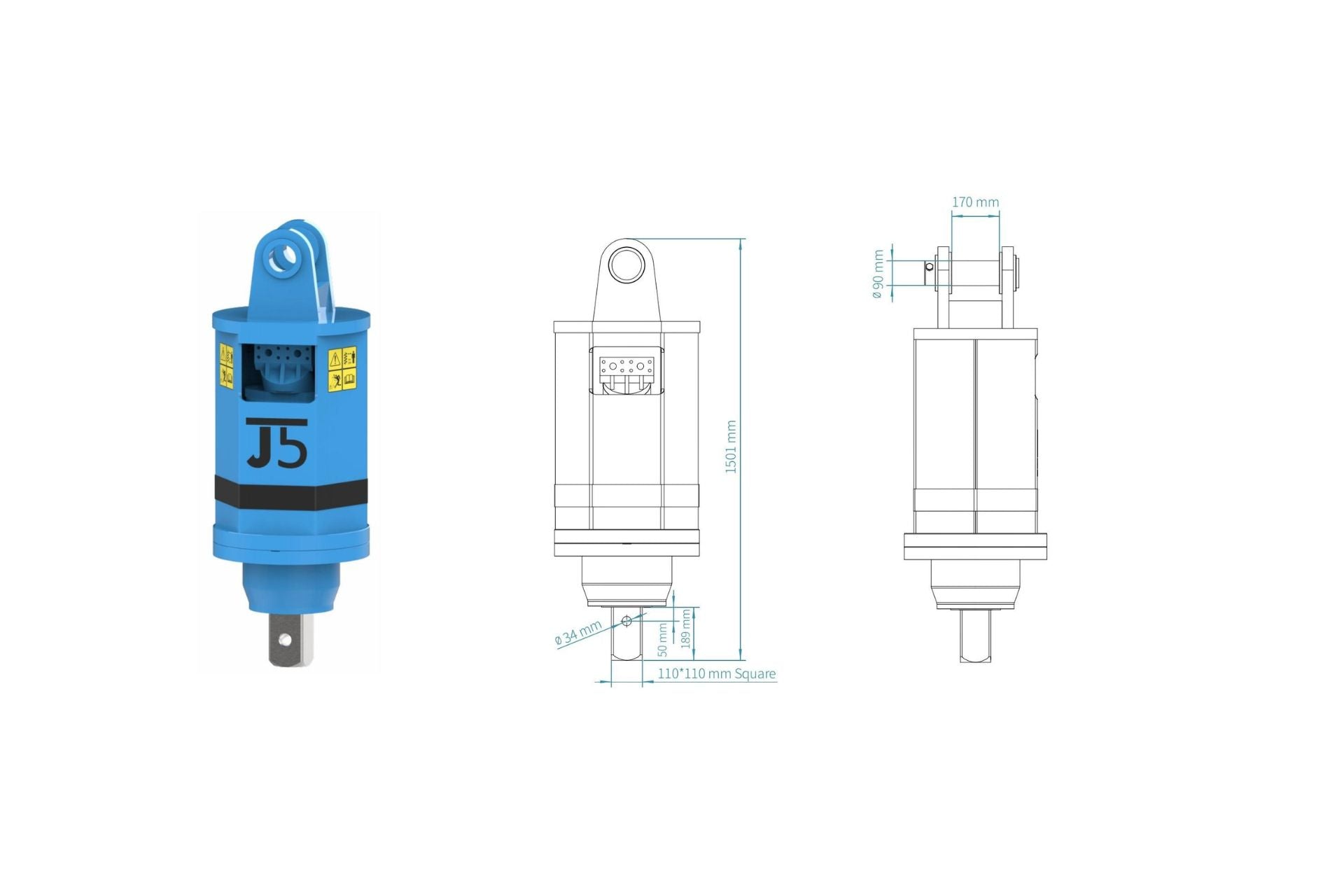

Product Parameters – JT5-20000 Y Series Anchor Drive
-
Suitable Excavator: 5–10 ton (11,023–22,046 lbs)
-
Rated Torque: 20,690 Nm (15,261 ft-lb)
-
Maximum Torque: 30,100 Nm (22,202 ft-lb)
-
Rated Power: 35 kW
-
Maximum Pressure: 200 Bar (2,901 psi)
-
Recommended Pressure: 100–165 Bar (1,450–2,393 psi)
-
Recommended Flow: 70–120 LPM (18.5–32.8 gpm)
-
Speed Range: 9–15 RPM
-
Weight: 165 kg (364 lbs)
-
Height: 940 mm (37.01 in)
-
Motor Oil Port: G3/4” BSP
-
Output Shaft: 75 mm × 75 mm Square (2.95” Square)
Product Applications
- Garden Construction: Tree planting, fence piling, landscaping, and related drilling operations.
- Civil Construction: Installation of road signs, poles, and foundation piles.
- Engineering Construction: Well drilling, spiral pile installation, rod and mast installation.
- New Energy Construction: Solar equipment foundation, wind turbine installation, and other renewable energy projects.
