A soggy gate entrance, water standing beside a barn, and tire ruts that never fully dry are more than inconveniences. They can limit access, damage pasture, soften building pads, and turn routine property work into recovery work. This acreage drainage project example shows how a practical drainage plan can move water away from a problem area without creating a bigger issue downhill.
For most acreage owners, the goal is not to drain every wet spot. It is to control water where it affects roads, structures, livestock areas, gardens, and usable ground. That takes a clear outlet, correct pipe grade, suitable aggregate, and equipment that can excavate accurately without tearing up more of the property than necessary.
The Acreage Drainage Project Example
Consider a 20-acre rural property in Canada with a gravel driveway, a 40-by-60-foot equipment shed, and a low pasture area beyond the building. During spring thaw and heavy summer rain, runoff from the driveway and shed roof collected along the uphill side of the shed. The water softened the gravel, pooled near one overhead door, and flowed across a high-traffic section of pasture.
The owner first considered simply adding more gravel. That would have improved the driveway surface temporarily, but it would not have addressed the water moving underneath and alongside it. The workable solution was a perimeter swale and buried drain system that intercepted runoff before it reached the shed, then carried it to a stable, permitted discharge point at the lower edge of the property.
The finished layout included a shallow grassed swale above the shed, a solid-pipe section to move concentrated roof runoff, and a perforated drain section beside the driveway where groundwater was collecting. Each part served a different purpose. Combining every water source into perforated pipe would have risked clogging the system and saturating soil around the line.
Start With the Water Path, Not the Machine
Before excavation began, the owner walked the property after rainfall and marked where water entered, pooled, and exited. This step identified two separate issues: surface runoff from higher ground and subsurface seepage near the driveway base. A laser level confirmed that the selected outlet sat lower than the trench start and could support continuous fall.
A drainage pipe needs slope to carry water. The exact grade depends on pipe diameter, anticipated flow, soil type, and local design requirements, but the principle is straightforward: avoid flat sections and low spots where sediment can settle. On a small acreage project, even a modest, consistent drop is more valuable than a trench that looks straight but rises and falls with the terrain.
Call utility-locate services before digging, even on rural land. Existing electrical lines, water lines, gas service, communications cables, and private services may not be where expected. In Canada, drainage work may also involve municipal rules, conservation authority requirements, or provincial regulations, especially when water will enter a ditch, watercourse, wetland, or neighboring property. An outlet should never transfer a drainage problem to someone else.
The Drainage System Design
The uphill swale was shaped first. It was broad and shallow rather than narrow and deep, allowing it to slow surface water while remaining easy to mow. The swale directed runoff toward a catch basin near the shed corner, where a solid pipe carried roof and surface water past the building foundation.
Along the driveway, the contractor installed perforated, corrugated drainage pipe with the perforations positioned according to the pipe manufacturer's guidance. The pipe sat on a bed of clean drainage stone, was surrounded by additional stone, and was wrapped with nonwoven geotextile fabric where the native soil contained fine silt. That fabric was not a substitute for correct aggregate. Its job was to limit soil migration into the stone while still allowing water to reach the pipe.
The trench was kept deep enough to protect the pipe from traffic and seasonal conditions, while avoiding unnecessary excavation near the building. In areas subject to Canadian freeze-thaw cycles, depth, backfill quality, and surface grading deserve extra attention. A system that drains well in August can still be damaged if shallow pipe or poorly compacted fill moves under frost and vehicle loads.
Where Solid Pipe and Perforated Pipe Belong
Solid pipe transports collected water. It is the right choice for downspouts, catch basins, and sections where water must pass beside a foundation, driveway, or work area without soaking into the surrounding soil. Perforated pipe collects groundwater from the soil around it. It is typically used in a stone envelope where water can filter down to the pipe.
Using the wrong pipe in the wrong place is a common failure point. Perforated pipe connected directly to concentrated roof runoff can overload the trench and leave water near the structure. Solid pipe installed in a wet driveway base may move runoff farther away, but it will not relieve groundwater pressure unless collection points or perforated sections are included.

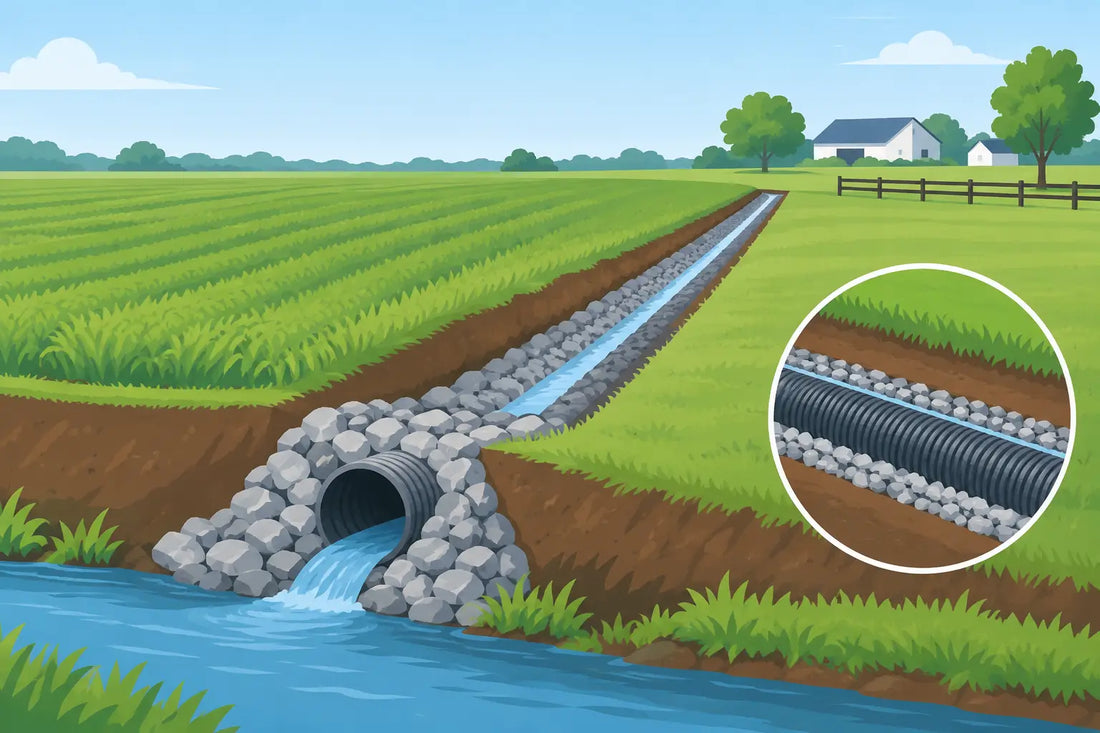

Cleanouts were installed at direction changes and accessible ends of the system. They add modest cost during construction and can save substantial digging later if flushing or inspection is needed. The outlet was protected with stone to reduce erosion and screened where appropriate to limit animal entry and debris buildup.
Equipment That Keeps the Work Accurate
For this project, a compact mini excavator was the primary machine. A machine in the 3.5- to 5-ton range can be a strong fit for many acreage drainage jobs because it has enough reach and digging force for trench work while remaining maneuverable around sheds, fences, trees, and existing landscaping. The right size depends on trench depth, soil conditions, access width, and how much material must be moved.
A grading bucket was used to shape the swale and finish the trench bottom without excessive tooth marks. A narrow trench bucket helped maintain a consistent trench width for pipe installation. For longer runs or heavy clay, a hydraulic thumb can make cleanup easier by handling rocks, roots, and old culvert material without leaving the operator's seat repeatedly.
A compact track loader or skid steer can speed up aggregate placement, spoil handling, and final grading. On soft ground, tracks generally provide lower ground pressure and better flotation than tires. However, wheeled equipment may be preferable on firm gravel surfaces where travel speed and lower operating cost matter more. The machine choice should follow the site, not a one-size-fits-all recommendation.
For acreage owners who expect to maintain ditches, repair culverts, set fence posts, move material, and complete future landscaping work, equipment ownership can make sense beyond one drainage project. Dealer-backed guidance matters here. JoyT5 helps buyers match compact equipment and attachments to the work they expect to perform, with warranty support and genuine parts available when uptime matters.
Construction Sequence That Avoids Rework
The project was built from the outlet backward. Establishing the outlet elevation first gave the operator a fixed reference for every trench section. After stripping sod where needed, the trench was excavated in manageable lengths and checked frequently with a laser level. Digging the entire run before confirming grade can create costly corrections, particularly on rolling acreage.
Stone was placed and leveled before pipe installation. The pipe was then set with proper alignment, connections were secured, and the line was tested with water before being covered. This simple test can reveal a blocked fitting, reversed grade, or missed low point while the system remains accessible.
The perforated section received clean stone around and above the pipe, followed by fabric overlap where specified. Native soil was placed over the fabric, then compacted in lifts where the trench crossed the driveway. Surface gravel was restored only after the base had been rebuilt and crowned to shed water. Rushing this stage is how trench settlement and recurring driveway ruts begin.
Common Trade-Offs on Acreage Drainage Jobs
A deeper system may offer better protection and greater collection capacity, but it requires more excavation, more aggregate, and more time. A shallow swale costs less than a buried line and is easier to inspect, but it needs room and may not suit areas where equipment traffic or finished landscaping is a priority.
French drains are often useful, but they are not the answer for every wet area. If the primary issue is roof runoff, a properly sized solid line and controlled outlet usually matter more. If the issue is a high water table or continuous hillside seepage, a perforated interceptor drain may be appropriate, but the outlet must remain functional during wet seasons.
The best drainage work also protects the property after the trench is closed. Keep heavy traffic off newly backfilled areas until the soil has settled, inspect outlets after major storms, and clear leaves and sediment from catch basins. If water begins backing up, address it early rather than adding gravel over the symptom.
A well-planned drainage project gives an acreage owner more usable ground and fewer weather-driven interruptions. Start by identifying where water originates and where it can legally and safely leave, then build the system around those two facts. The right trench, pipe, aggregate, and compact equipment can turn a recurring wet spot into ground that works when you need it.
